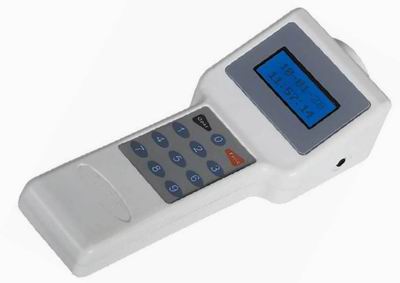

Brand Name: DouWin Lock
Model Number: RF-V10
125khz Temic card or 13.56Mhz mifare card
funtion: To program for all the door locks  and collect open door record data from teh lock.

A.hotel RF card lock System Construction

DouWin card locks, computer, management software, Encoder, 125khz Temic card or 13.56Mhz Mifare card. energy saving switch

B. Multiple functions

1. Five levels of control: General control(Master card), building control, floor control, area control(staff card) and room control(Check in Guest card).

2. Password control: System password and operating password together to ensure security.

3. Cipher coding to key card: Each card has a different code that cannot be copied. Compulsory decoding will destroy the card automatically.

4. Area control: Cards of different types and levels can open different locks in different locations.

5. Timing control: Working clock is set inside locks to control the effective time limit of card keys.

6. File record: All issued card keys have records including each opening(also mechanical key opening).

7. Loss reporting: Open function can be cancelled when the card is missed.

C. Strong compatibility and expansiveness

Basic Technical Functional Index:

1. Power Supply: DC6V, use of 4 pieces of No. 5 (or No. 7) AA batteries, with lack of voltage indications.

2. Static Power Supply: <1u A>

3. Dynamic Power Supply: About 200mA

4. Lifetime of battery: For the allowed door open times, it normally can exceed 10, 000

5. Inductive Distance: 3-10cm

6. Record inside the lock: 512lines for standard type, exceed 1, 000 lines for special demand

7. Setting Requirement: Working temperature -20'C~70º C, humidity: 98%max

8. Anti-static Electricity: Totally closing status, the problem of static electricity is resolved
