功能特点：
1、二级发卡管理模式（总控卡\客人卡），采用单卡开门管理方式。
2、所有开门卡均由门锁直接配制，不需要软件、发卡机，每把锁最多30张开门卡。
3、应用于企事业单位、学校、办公室、公寓、别墅等场所。
技术性能指标：
电源：DC4.5V，采用3节5号（或7号）碱性电池，具有欠压提示。
静态功耗：﹤3μA
动态功耗：约250mA
感应距离： 1-3cm
电池使用寿命：正常情况下，开门﹥10，000次，低压批示后仍可开门150次
环境要求：温度-20℃--70℃，湿度≤98％
抗静电：全封闭，彻底解决了静电问题。

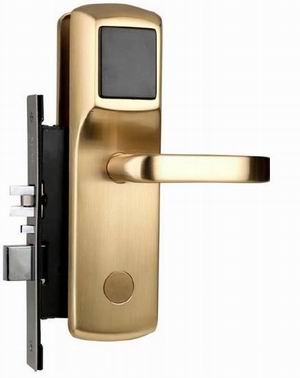

Mifare card Door lock for Home: This type lock needn't management software and encoder. All the open door cards can be issued by door lock directly. One door lock can issue 30 pieces of open door card at most. It is mainly used for home, apartment, office, etc.
Basic Technical Functional Index:
1. Power Supply: DC6V, use of 4 pieces of No. 5 (or No. 7) AA batteries, with lack of voltage indications
2. Static Power Supply: <1u A>
3. Dynamic Power Supply: About 200mA
4. Lifetime of battery: For the allowed door open times, it normally can exceed 10, 000
5. Inductive Distance: 3-10cm
7. Setting Requirement: Working temperature: -20'C~70'C, humidity: 98%max
8. Anti-static Electricity: Totally closing status, the problem of static electricity is resolved |
